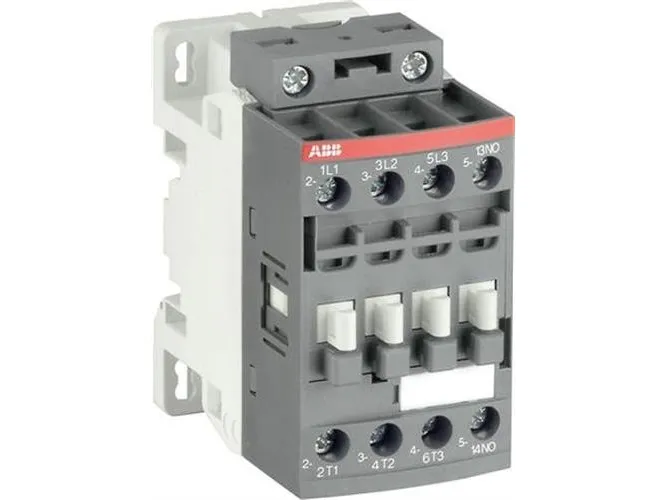

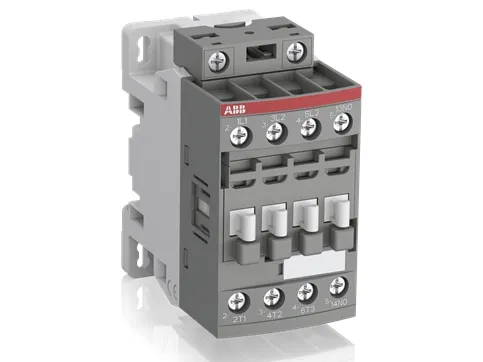

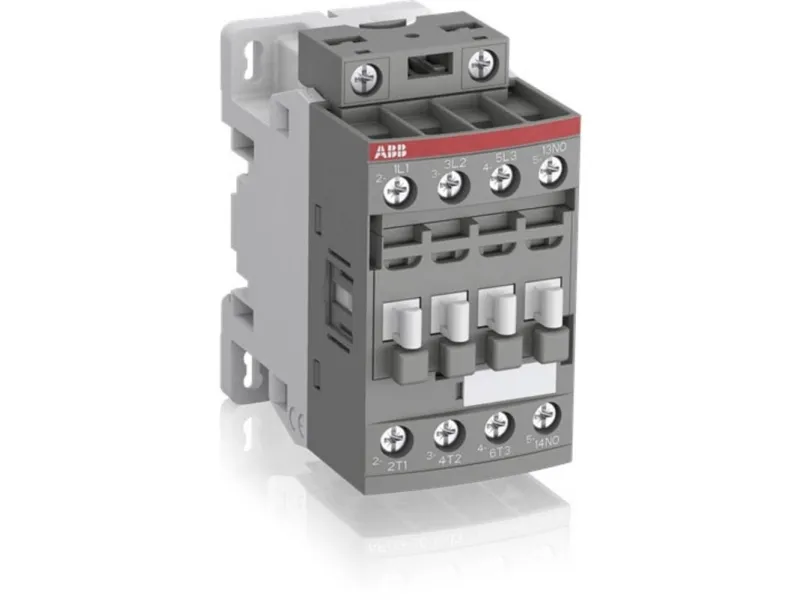

ABB-kontaktori 4kW, 400V AC, 9A AC33-napainen, 1NC, ohjausjännite 24-60V AC/20-60V DC

Tuotenumero: [1640598] | Valmistaja: ABB | Mallinum: 1SBL137001R1101 | EAN: 3471523110113 | UNSPSC.: 39121529 | EL-nr.: 2122709012
Etävarastossa
Tuotetta on etävarastossamme. Toimitusaika noin 3-4 työpäivää.

Kuljetus 10,04 - Budbee - Laatikko - Valitse itse mikä laatikko.

Toimituskulut on laskettu vastaanottajan postinumeron perusteella: - Vaihda postinumero
Syötä postinumero toimitusta varten: Tallenna
Katso kuljetusvaihtoehdot
Budbee Laatikko - Nouda valitsemastasi laatikosta!10,04
Bring - Toimitus huoltopisteeseen10,04
Bring - Kotiinkuljetus -arkisin.20,08
EUR 27,74
ilman ALV 22,10
Kokonaishinta sis. toimitus 37,78
Lue lisää teknisistä tiedoista
AF09 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available. Note: AF..-30-..-11 not suitable for a direct control by PLC-output. AF..-30-..-11 contactor type available in some countries: please consult your ABB representative.
