Ermenrich Ping MK10 Digital Clamp Meter

Functions: voltmeter, ammeter, ohmmeter, continuity test, diode test

This tool features Schmieroll lubrication technology.


Find out more

---

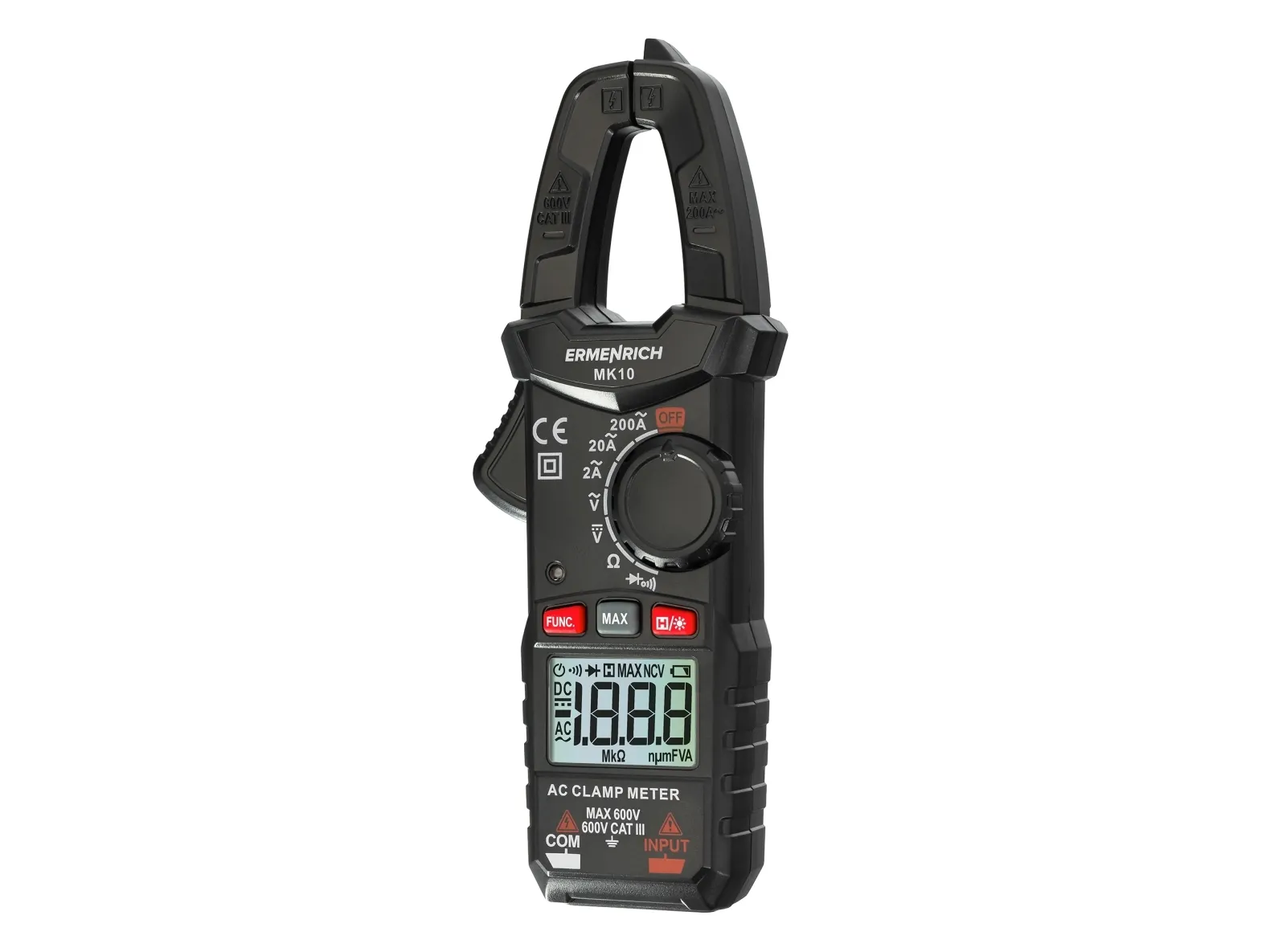

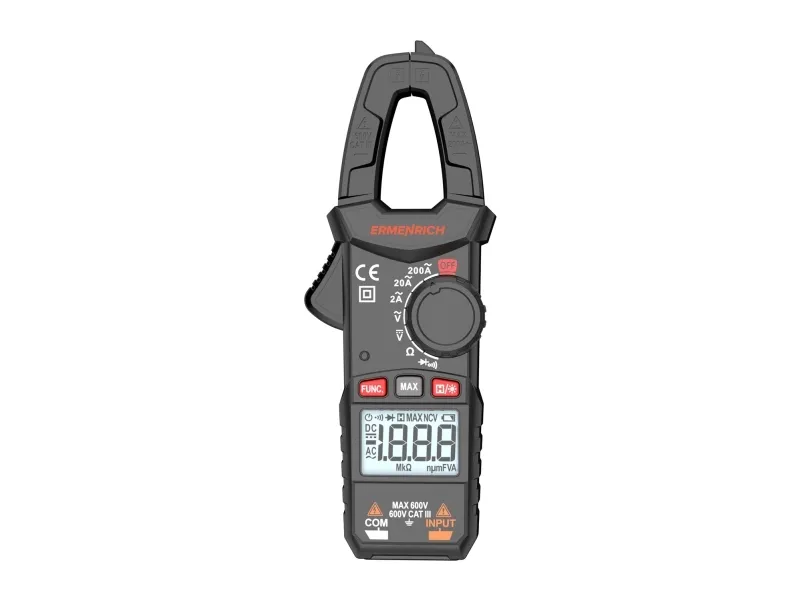

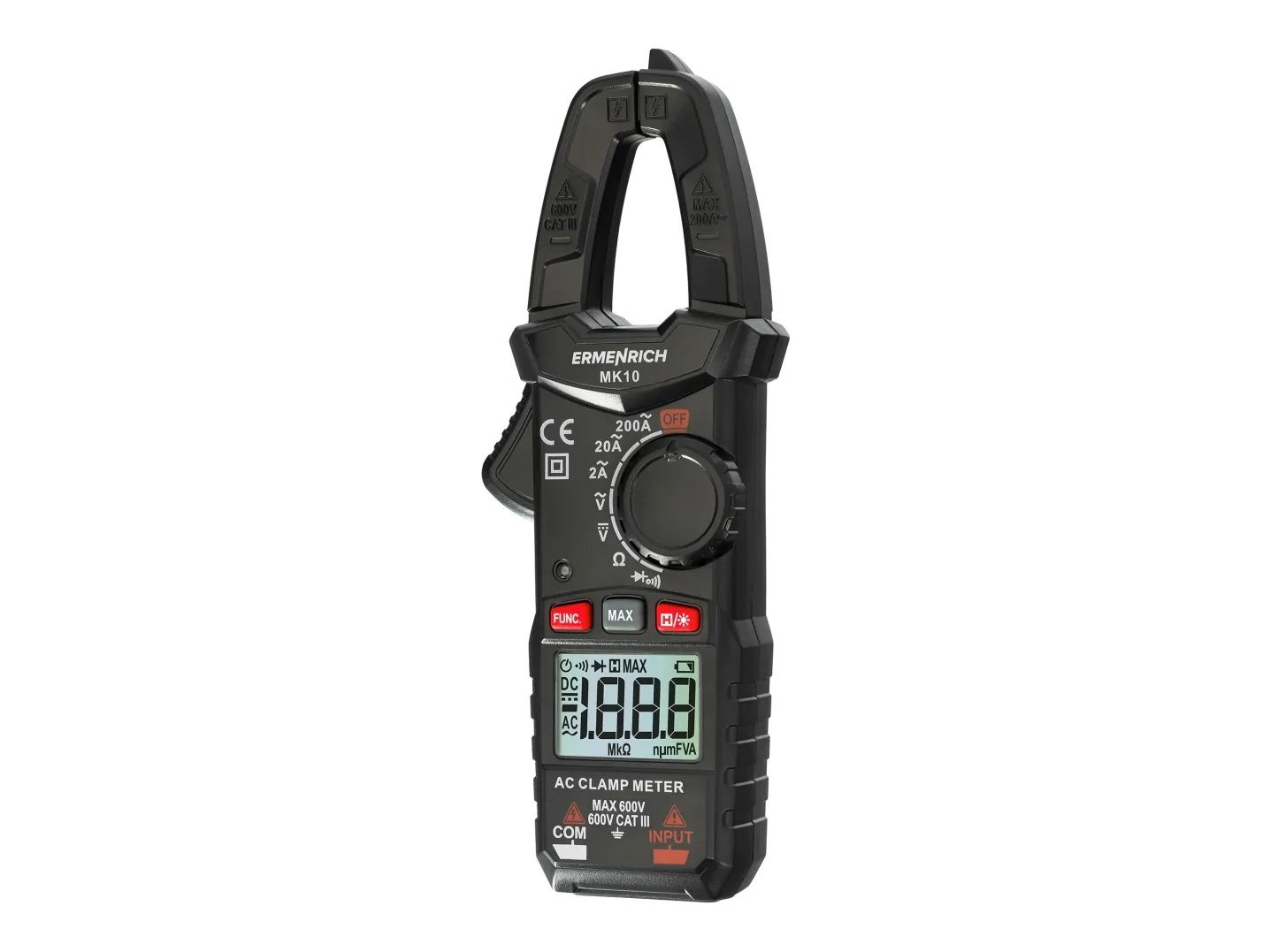

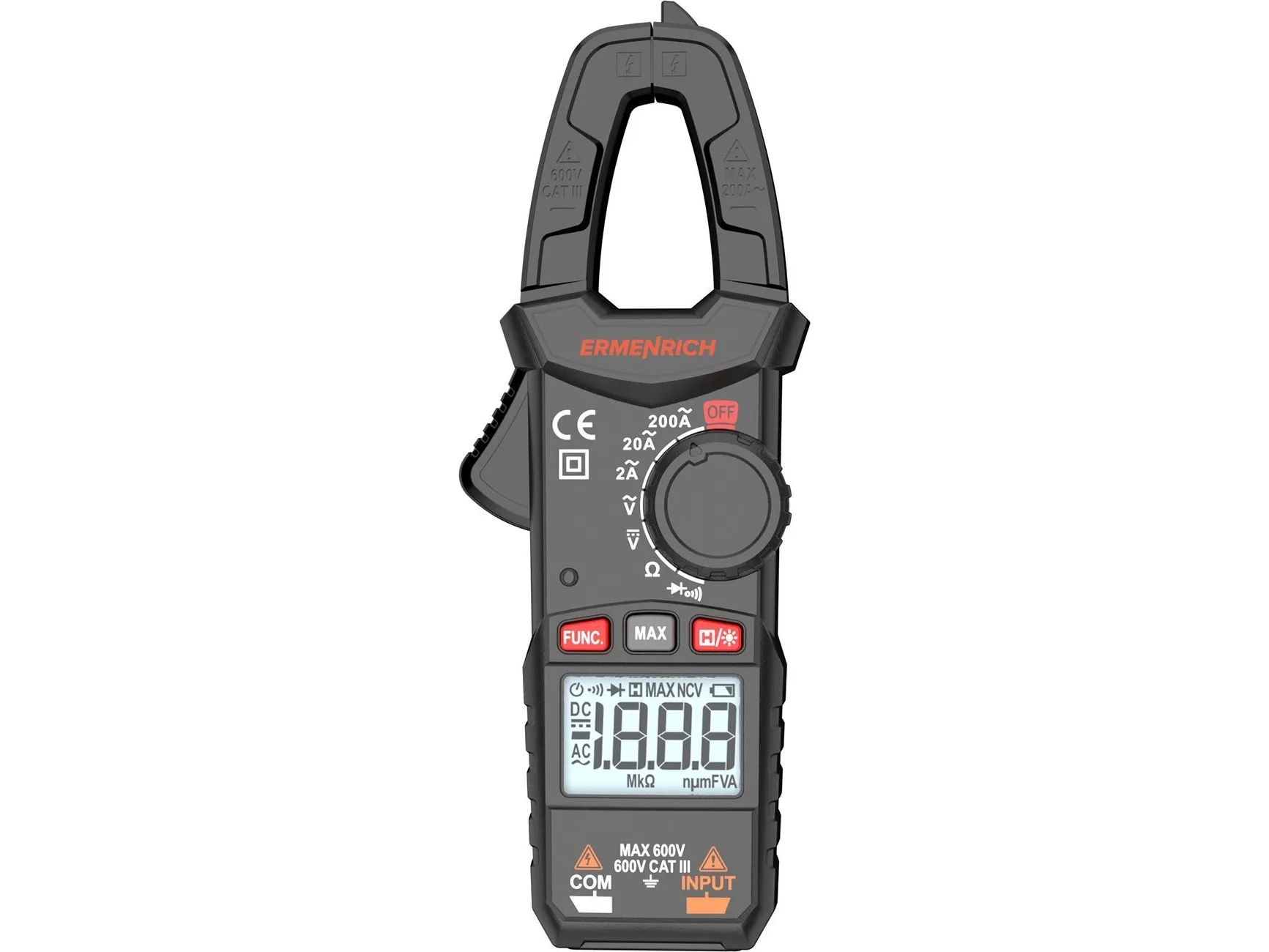

The Ermenrich Ping MK10 clamp meter is a portable measuring device that does not require breaking the circuit to measure current and thereby ensures safe work with electrical networks and electrical equipment. The digital clamp meter is indispensable when it is not possible to turn off the electricity, and it is convenient to use when measurements are taken in hard-to-access places.

The device combines the functions of a voltmeter (measurement of direct and alternating voltage), ammeter (measurement of alternating current), and ohmmeter (measurement of resistance). Calculations are carried out using True RMS, and so the measurement accuracy of variable quantities is high. The additional functionality of the model includes checking circuit continuity and testing diodes for faults.

The measurement results and operating parameters of the device are displayed on the built-in screen. The screen backlight makes it easy to work in low light and complete darkness. There is a Data Hold function, which is useful in a situation where it is impossible to immediately take readings from the device. When activated, they will be “frozen” on the screen and can be accessed later.

The device requires a pair of standard batteries to operate. The auto-off function helps save power. When the batteries are low, a notification will appear thereby indicating that they need to be replaced.

Key features:

• Measurement of AC current without breaking the circuit


• Determination of direct and alternating voltage, resistance


• Diagnostics of diodes for malfunctions (open and short circuits), circuit testing for short circuits and open circuits


• Data Hold function to freeze readings on the screen, saves the maximum value


• True RMS – calculation of variables with a high accuracy


• Battery-powered, auto-off function

The kit includes:

• Clamp meter


• Probes


• User manual and warranty card

Brand	Ermenrich
Warranty	5 years
EAN	5905555017440
Package size (LxWxH)	18x10x4 cm
Shipping Weight	0.245 kg
Selection of the measuring limit	automatic, manual
Basic functions	voltmeter, ammeter, ohmmeter
DC voltage measuring limit	200mV/2V/20V/200V/600V: error ±(0.5%+5)
AC voltage measuring limit	2/20/200/600V: error ±(1.0%+5)
AC current measuring limit	2/20/200А: error ±(2.5%+8)
Resistance measuring limit	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ: error ±(1.0%+5)
Diodes test	yes
True RMS	yes
Hold function	yes
Limit value function (Min/Max)	+ (maximums only)
Conductor continuity check	yes
Overvoltage category	CAT III 600V
Display counts	2000
Display backlight	yes
Safety standards	EN61010-1,-2-030; EN61010-2-033; EN61326-1
Power supply	2 AAA batteries (not included)
Low battery status indicator	yes
Auto power off	yes
