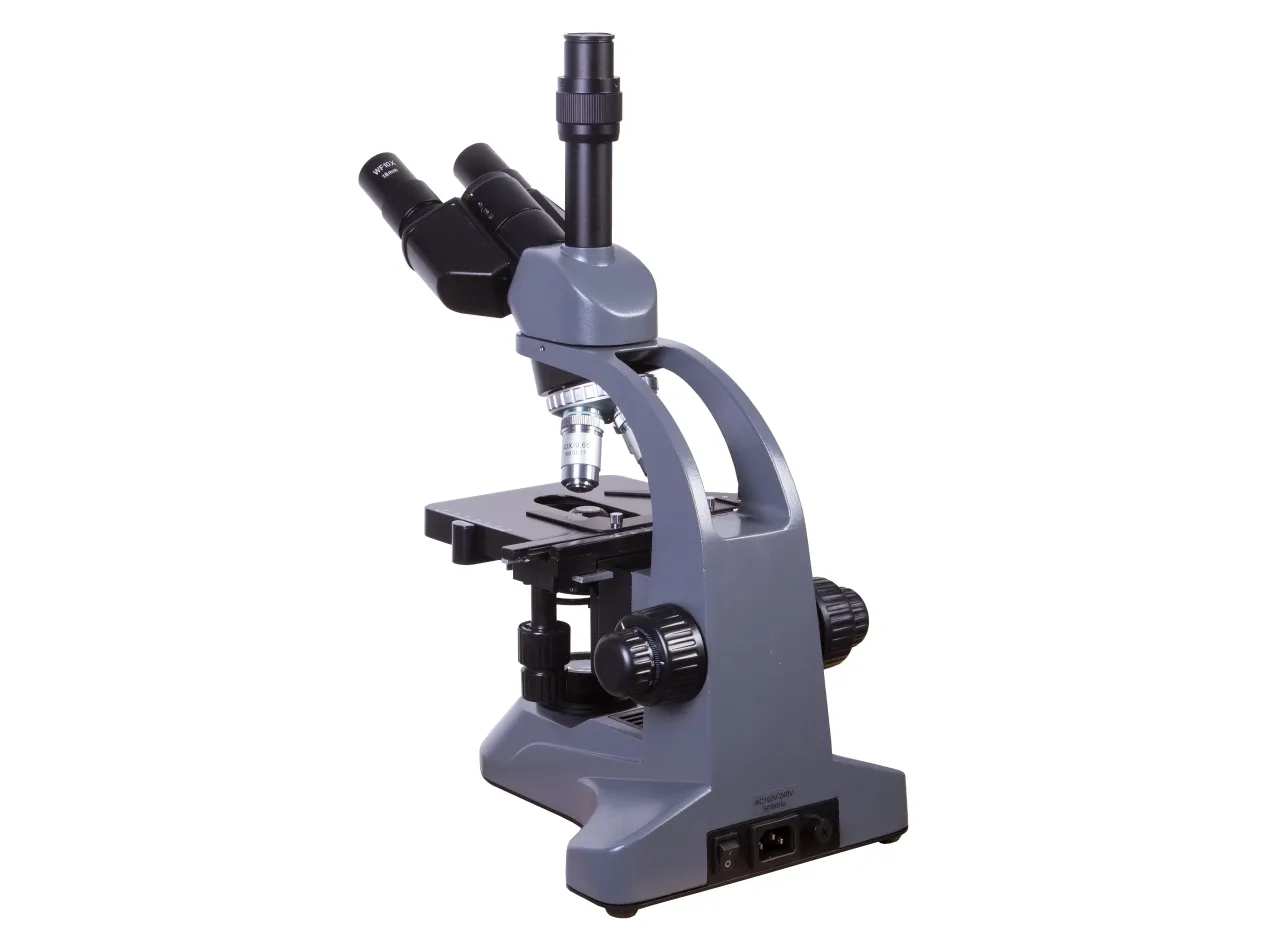

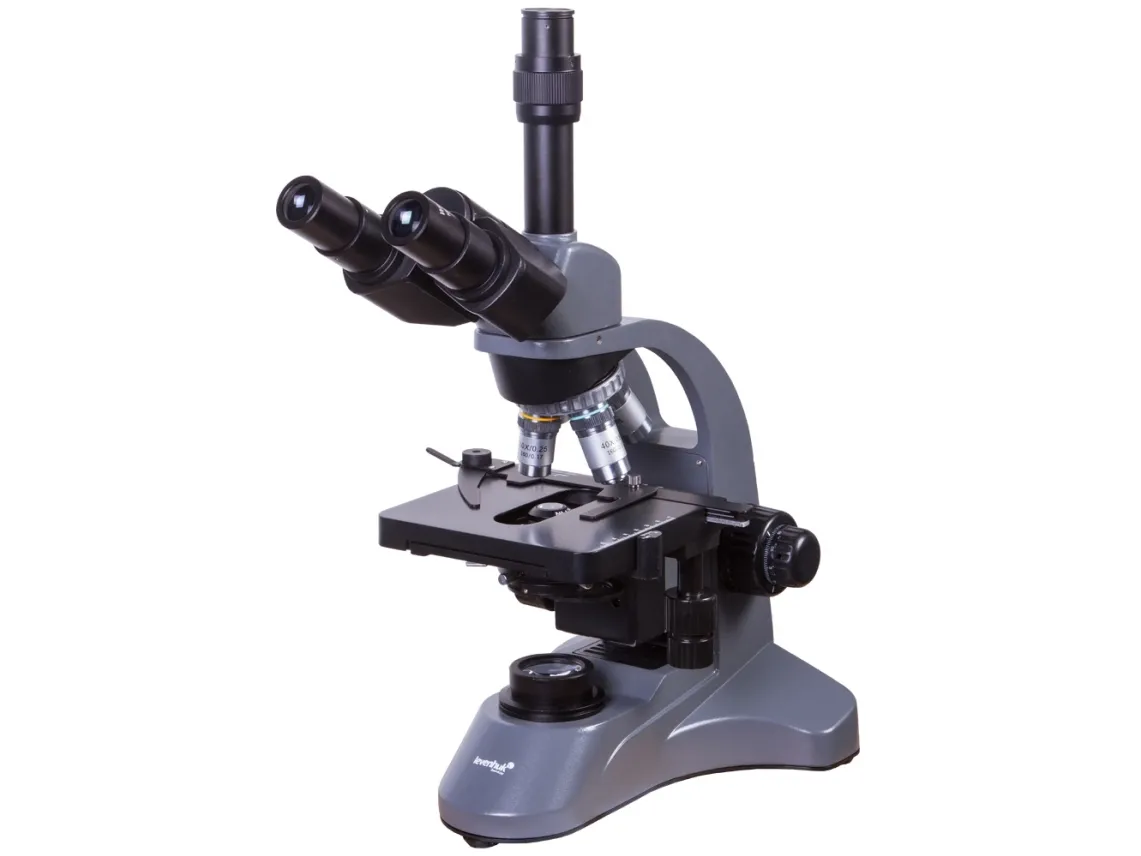

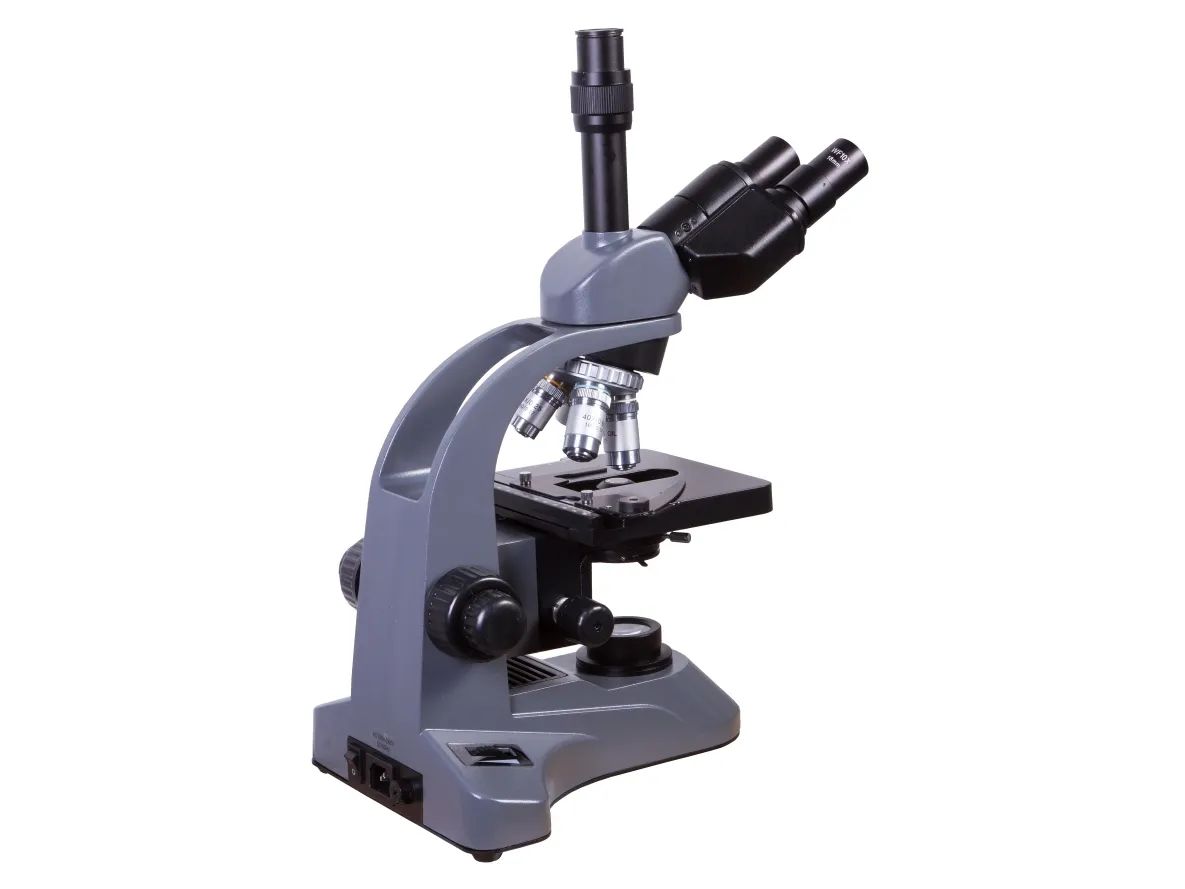

Levenhuk 740T Microscope – trinocular microscope, which enables you to carry out classic biological studies and employ modern technology in your observations. Trinocular head allows you to install any digital camera adapted to the 23.2mm eyepiece tube.

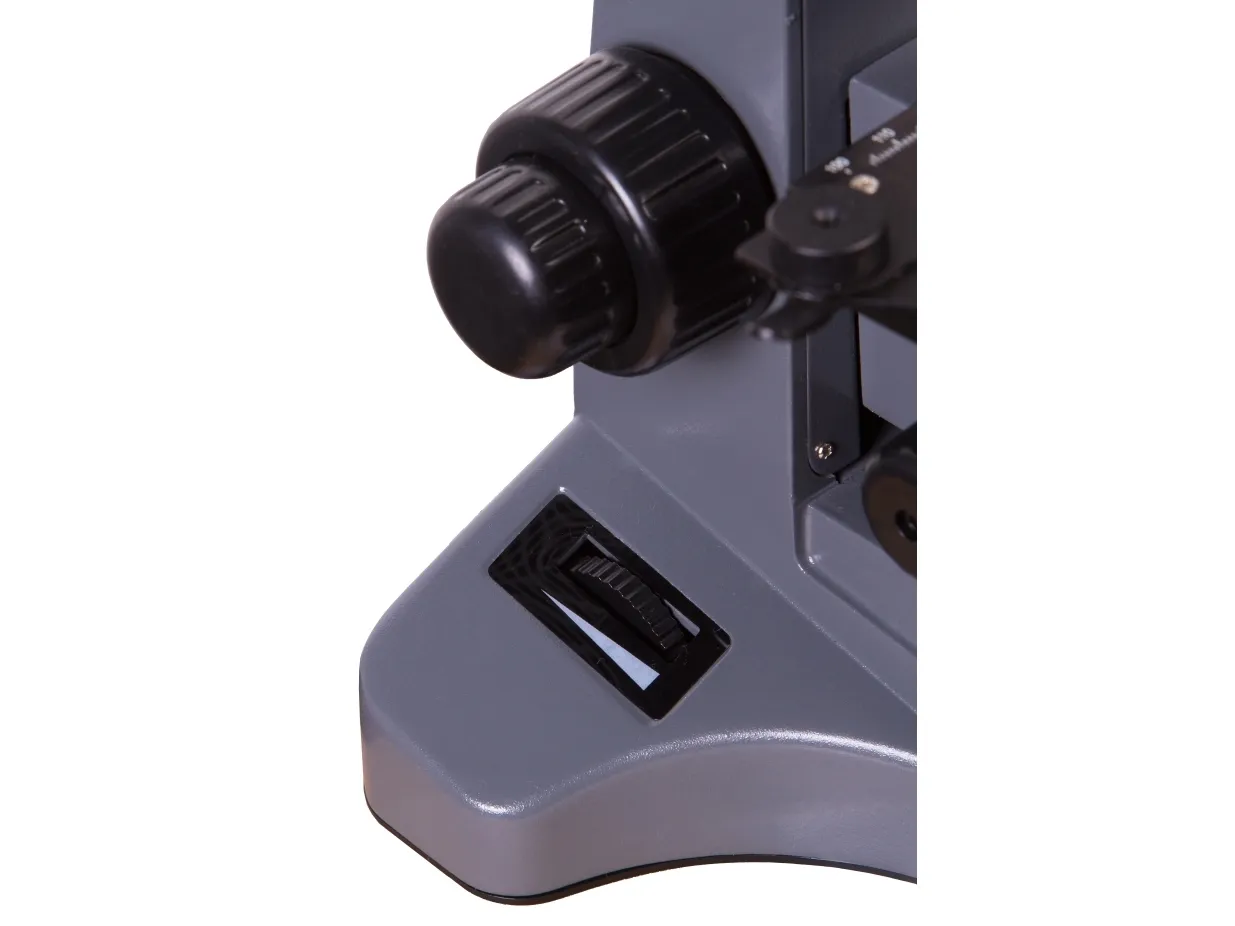

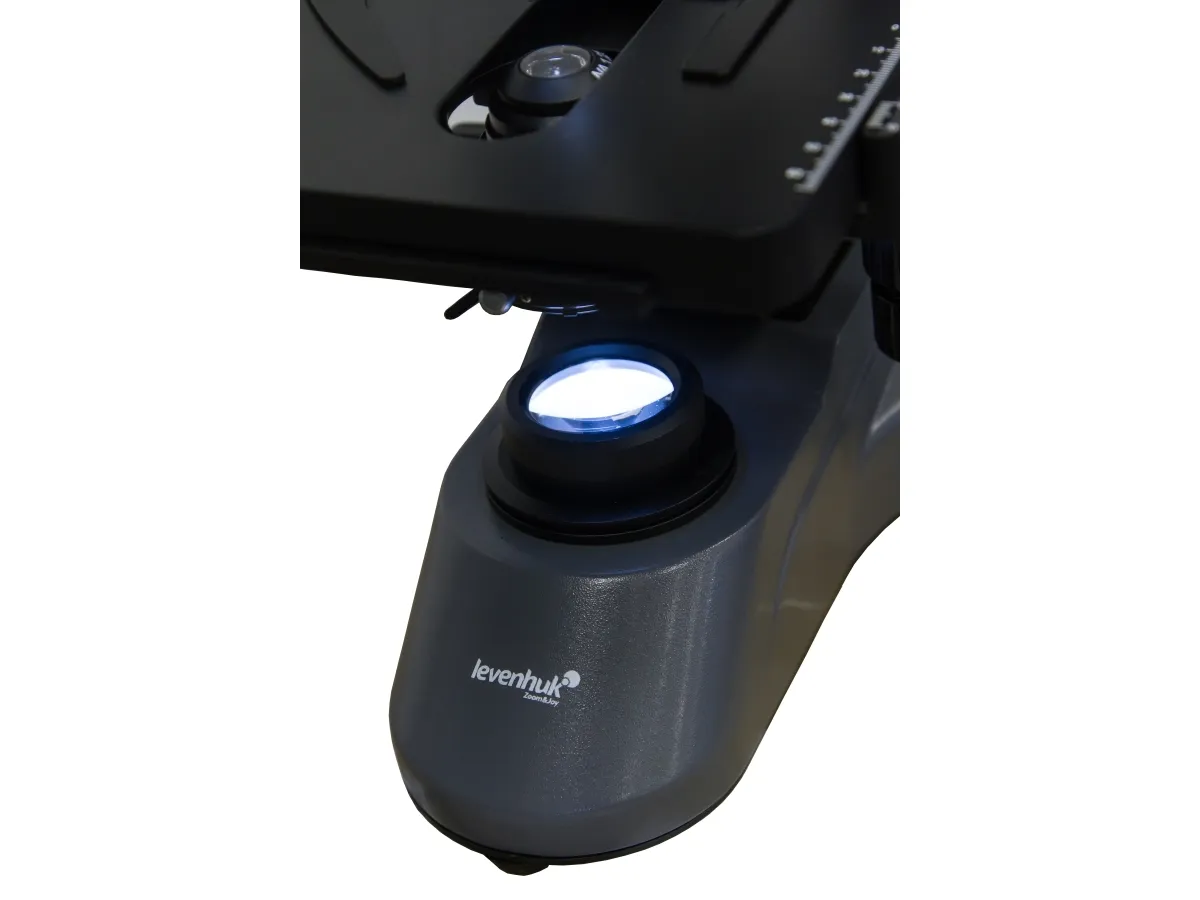

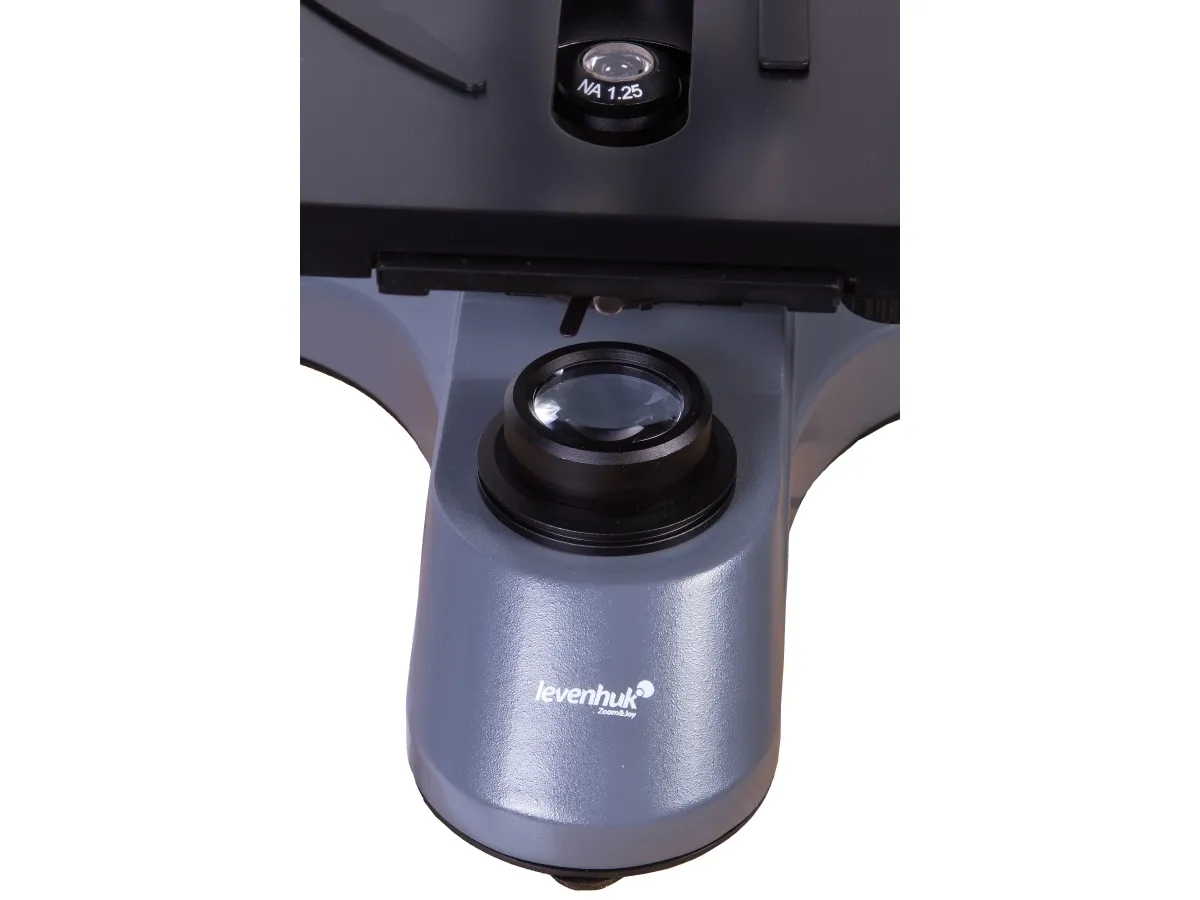

The microscope is equipped with lower illumination – that means you can observe only transparent microscope samples. The intensity of light is adjustable over a wide range. An Abbe condenser repeatedly amplifies the light beam and directs it exactly on the area of research. The microscope allows for observations in the bright field mode. It also allows using the oil immersion method.

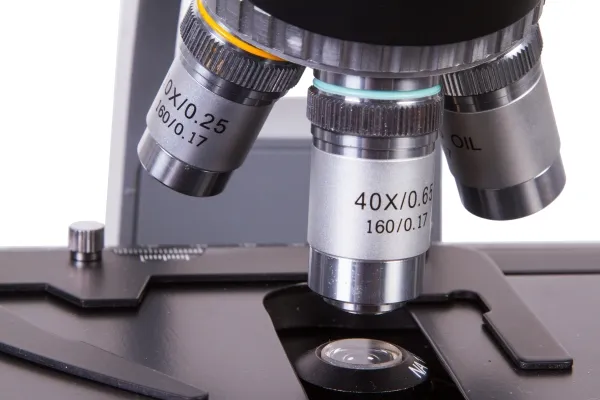

The revolving nosepiece is designed to accommodate four objective lenses. Combining them with interchangeable eyepieces of different magnification, you can obtain a wide range of fixed magnification in the 40x-2000x range. All eyepieces that come in the kit are paired.

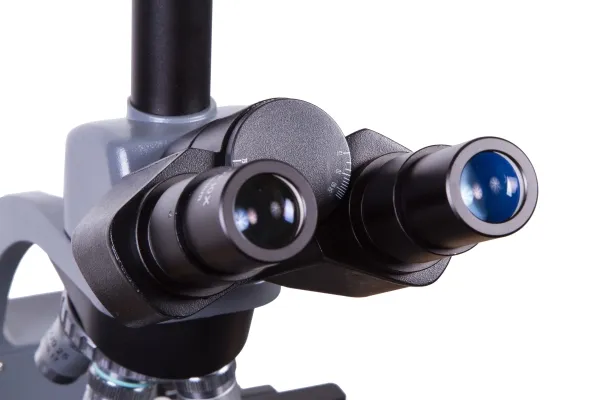

Trinocular head is inclined at 45° and rotates 360° around its axis. This is especially convenient for group work, when you need to let a wide audience access the observed samples – just turn the microscope head, instead of moving the whole instrument.

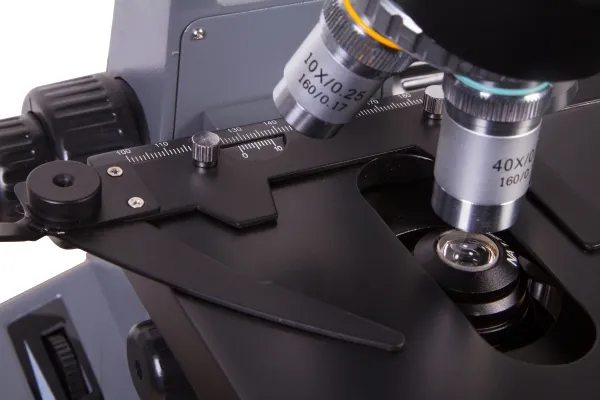

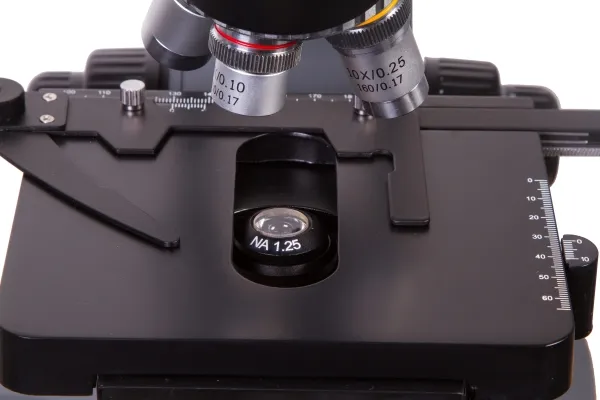

Samples are fixed on the stage using two convenient metal clips. The stage itself moves vertically and horizontally, allowing you to accurately determine the area of research and focus on a small part of the sample. The focusing mechanism allows for fine and coarse sharpness adjustment. Most amateur microscope models lack this useful feature.
The microscope comes with a special dust cover for convenient storage of the instrument.

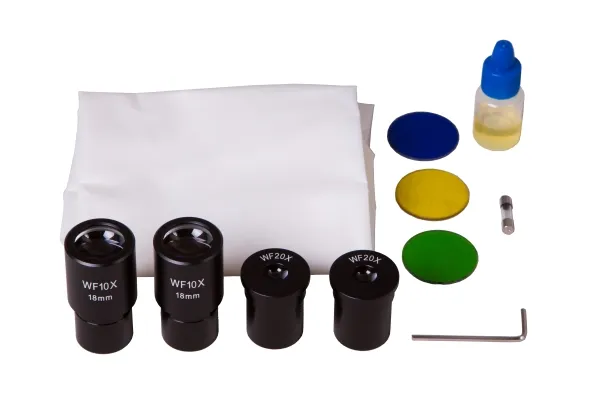

The kit includes: Microscope stand with base Trinocular head Achromatic objective lenses: 4x, 10x, 40xs, and 100xs (oil) Eyepieces: WF10x and WFH20x Filters (blue, yellow, green) Bottle of immersion oil Dust cover AC adapter Allen key Spare fuse User manual Lifetime warranty
Mikroskoopin tyyppi
Optinen mikroskooppi
Tuotteen väri
Musta, Harmaa
Kotelon materiaali
Alumiini
Kaksikerroksinen mekaaninen näytepöytä
Kyllä
Näytepöydän liikkumisalue (pystysuora)
0 - 24 mm
Näytepöydän liikkumisalue (vaakasuunta)
0 - 75 mm
Koordinaattiasteikko
Kyllä
Suurin suurennus
2000x
Valaistus
Kyllä
Min. suurennos
40x
Okulaarien lukumäärä
3
Okulaari(t)
WF10x/18mm, WFH20x
Objektiivien lukumäärä
4
Valaisutyyppi
LED
Lampun teho
3 W
Objektiivin materiaali
Lasi
Käännettävä pää
Kyllä
Pään pyörimiskulma
360°
Pään kallistus
45°
Kirkkaudensäätö
Kyllä
Hienotarkennus
0,002 mm
Diopterin kompensaatio (±)
6
Karkeatarkennus
2,2 cm
Kondensori
Abbe N.A. 1.25
Suodattimen tyyppi
Sininen, vihreä, keltainen kamerasuodatin

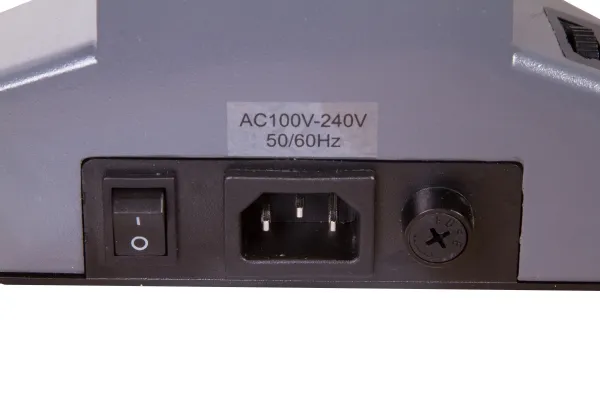

Voimanlähde
AC
AC-syöttöjännite
110 V
AC-syöttötaajuus
50 Hz
Näytepöydän leveys
14 cm
Näytepöydän syvyys
13 cm
Okulaarin putken halkaisija
2,32 cm
Okulaariputken pituus
16 cm
Pakkauksen leveys
400 mm
Pakkauksen syvyys
490 mm
Pakkauksen korkeus
270 mm
Pakkauksen paino
5,68 kg
Säilytyspussi
Kyllä
Käyttöopas
Kyllä
Löydämme tuotteen järjestelmästämme helposti seuraavalla tuotenumerolla
SKU:
LEV-69657
EAN:
5905555004600
