Vertiv VRCS3300-230VS, Musta, 1230 mm, 1530 mm, 2134 mm, 378 kg

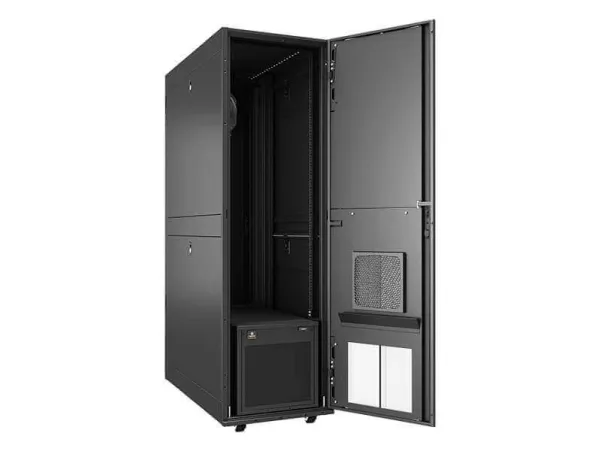

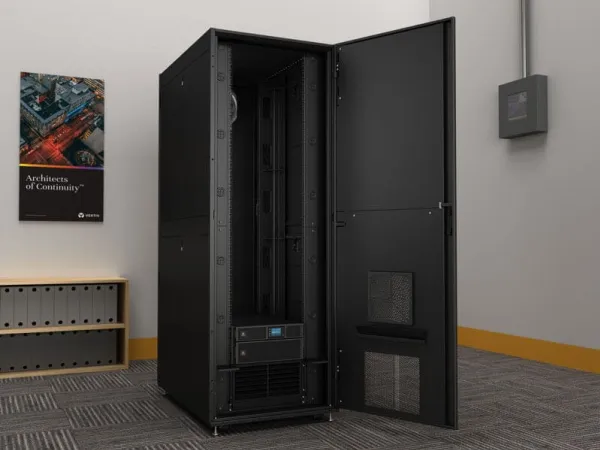

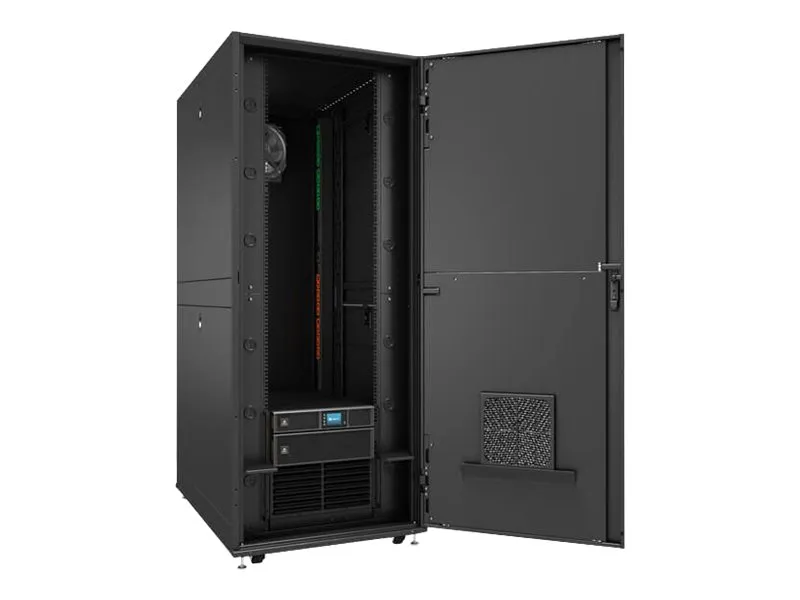

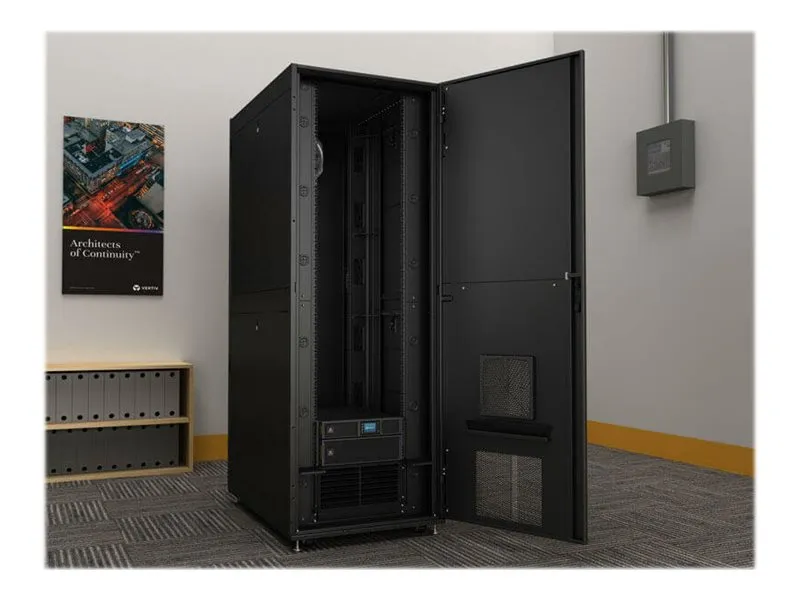

The Vertiv VRC-S VRCS3300-230VS offers a complete micro data center solution to rapidly convert unconditioned areas into a pre-engineered edge IT space for your critical IT infrastructure. The unit is completely factory integrated. This solution consists of a cabinet based on VR3300 rack (42 U, 1200 mm deep, 600 mm wide) with a pre-installed and pre-filled 3,5 kW split cooling module (VRC202KIT-N) that provides cool air directly to your critical IT gear. This VRCS3300-230VS includes an outside condenser unit for a minimum ambient temperature of down to -15 °C. It removed the heat outside the building shell. The connection of the two cooling elements is not included. The rack system separates the cool air in the front from hot exhaust air in the rear. The cooling system is backed up with an independently controlled emergency fan. The Vertiv VRC-S also has an intelligent single phase Vertiv Geist rPDU GU30017L (switched and monitored on outlet level), 32 A, 230 V, vertical mounted with locking IEC60320 C13 (20) and C19 (4) receptables, rack temperature sensor (1), 2,5 m external power cord and an IEC60309 2P + E 32 A plug. The PDU is connected to temperature and door contact sensors. The entire system can be managed through a single IP address with Vertiv Intelligence Director.
