Fischer 52018182, Ruuvi- ja seinätulppasarja, Autoklaavipintainen kevytbetoni, Betoni, Muuraus, Muuraus, Tiilimuuraus, Tiili, Muovi, M6, 1,2 cm, 28 cm

Distance mounting system THERMAX 10/220 M6 B, dowel

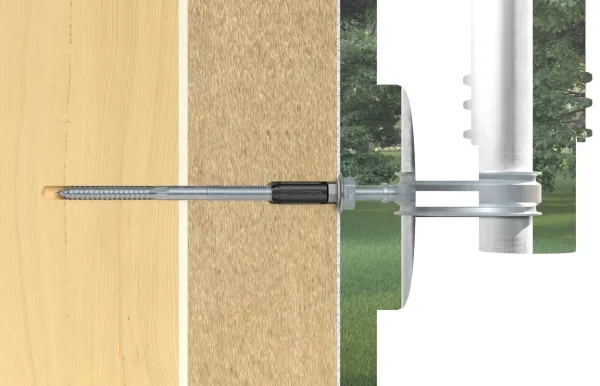

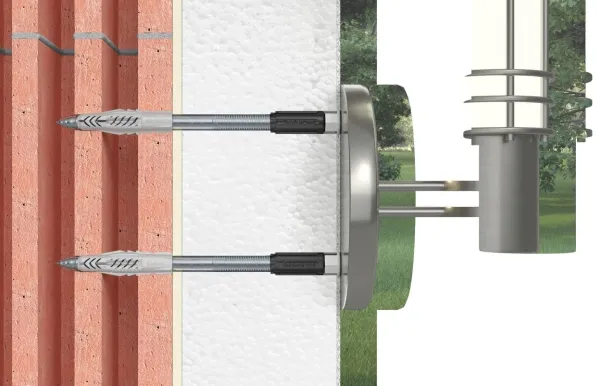

The fischer distance mounting system Thermax 10 is a solution for mounting in the outside wall without thermal bridges in the thermal insulation composite system (ETICS). The hanger bolt with the glass fiber reinforced cone mills itself through the plaster into the insulating material. During installation, the hanger bolt is screwed into the universal dowel UX and is thus securely anchored in the building material. The anti-cold cone on the head of the hanger bolt reliably interrupts the thermal bridge and accommodates the external attachment. The Thermax fastens light loads such as lights, mailboxes or lightning conductors in concrete, aerated concrete and masonry made of perforated and solid brick.

Type: universal anchor

EAN: 4048962166842

Manufacturer number: 520182

Quantity: 2-part assortment

Dimensions: drill diameter | 12mm

Dimensions: dowel length | 70mm

Dimensions: drill hole depth min 260mm

Screws: Suitable Types | Self-tapping screws, metric screws, chipboard screws

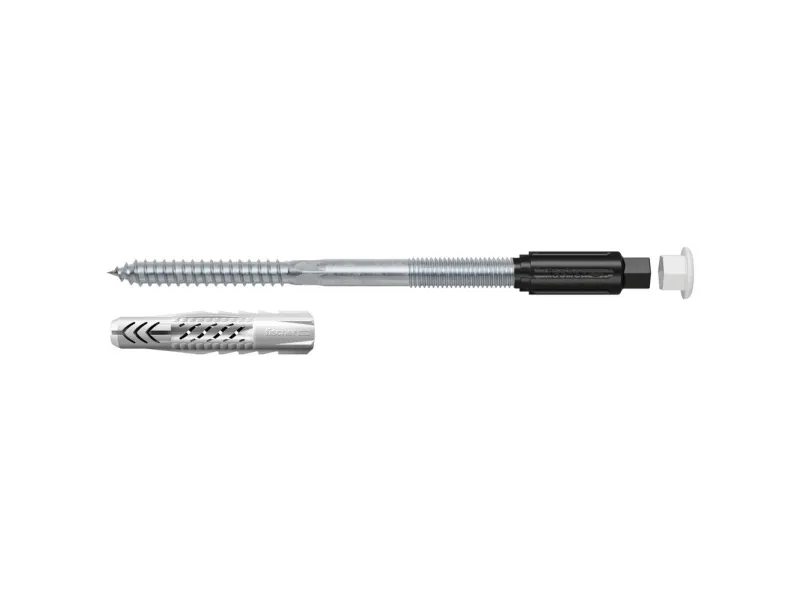

Screws: Included | 2x hanger bolt Thermax with anti-cold cone, wrench size SW13

Container: pouch

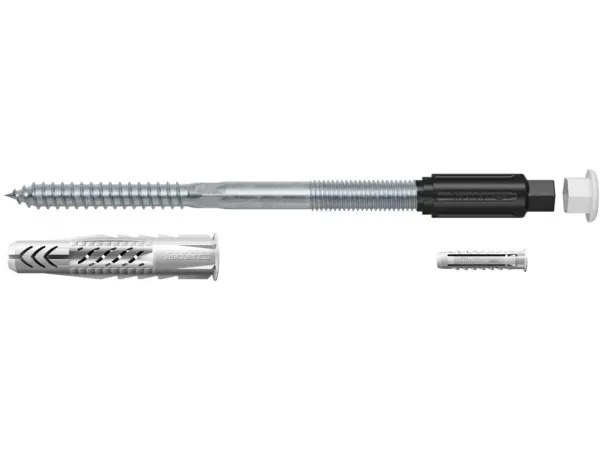

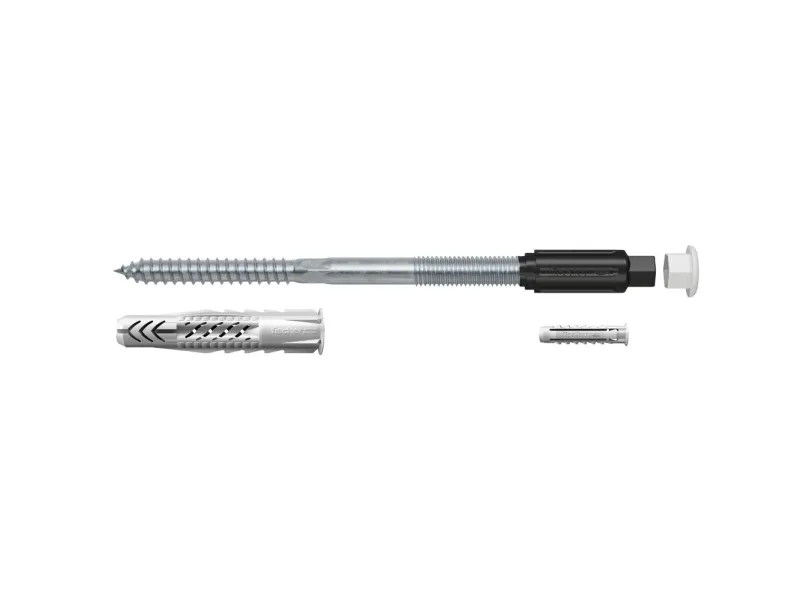

Contents: 8 pieces (2x dowels UX 12x70, 2x Thermax, 2x dowels SX 5x25, 2x cover caps)

Examples of use: motion detectors, lightning rods, mailboxes, guide rails for blinds, lights, downpipes, signs/house numbers

Suitable building materials: concrete, hollow brick, perforated sand-lime brick, solid sand-lime brick, hollow hollow concrete block, wood, aerated concrete, solid brick, ETICS insulation panels

Feature: Self-milling plastic cone, assembly without setting tools

Further information: For insulating material thickness 200 - 220mm

Note: Thermax 10 is suitable for pre-positioned installation

Weight: 277 grams
